The fixed collaborative robot，HelenX5, serves as a desk-type automated solution. Engineered for seamless integration, it can swiftly get interfaced with various instruments, efficiently handling sampling to different instruments. Equipped with an intuitive workflow dragging and scheduling control system,HelenX5 enables fully automated sample - loading operations, eliminating the need for unattended instrument operation.
Satisfying work efficiency and consistency,the robot fully replaces repetitive and boring manual operation.Samples loaded through high-throughput rack,it allows unattended operation for long time,shortening the RD period of laboratories,reducing the cost and elevating the efficiency a lot.
| Degree of freedom | 5 |
| Action Scope | J1:+/-180°rotate,J2:480mm standard,750mm(customized) J3:+/-90°rotateJ4:+/-175°rotate J5:+/-180°rotate |
| Maximum armspread | 800mm standard,1000mm(customized) |
| Maximum load | 3kg |
| Repeatability | +/-0.05mm |
| Weight | 28kg |
| Work speed | 500mm/s |
| Work environment Temperature | 0-45℃ |
| Average power | 150W |
| Work environment humidity | 90%Relative humidity (non - condensing) |
| Power supply | 100-240VAC,50-60Hz |
Smart Interaction
With a built-in camera, it enables intelligent human-robot interaction,facilitating smooth communication between operators and the robot.
High Integration
The robot's joints rotates inwards,especially beneficial in laboratories where space may be limited. With a built-in scanning module, it provides a high functional integration.
Flexible Instrument Interfacing
Remarkably flexible for integrating multiple instruments and adaptable for automated sampling to all instruments.
Ultra-high Work Efficiency
The robot allows working continuously for 24 hours 7 days,much higher work efficiency compared with manual operation to customers' labs.
Stable Data Dracebility
The data of all workflows is enabled for tracing.You can have access to the identification details and transfer records of the samples.

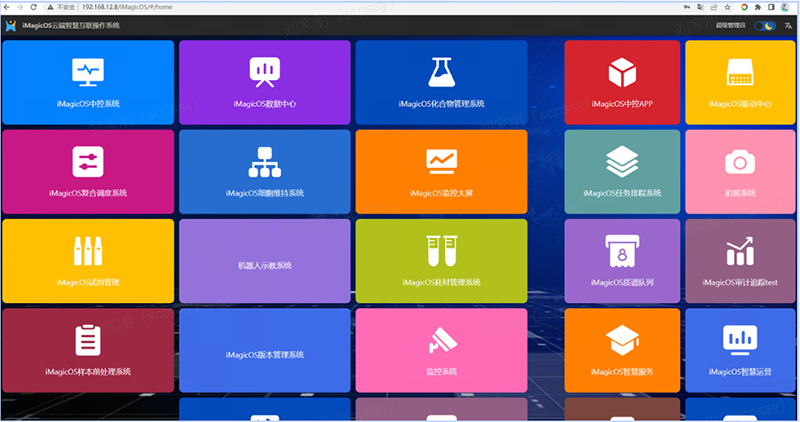

SMART SCIENTIFIC OPERATION SYSTEM

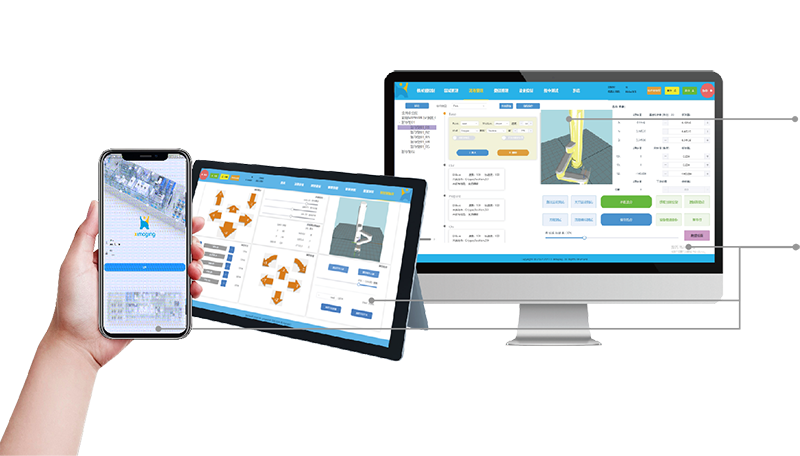

The graphical interface design allows users to easily create experiment methods by drag and drop.Start them with just one click,simple and user-friendly.Powerful functions,enabling precise control of every position of the robot. It supports crossed platform and multiple terminals, like PCs, pads, and mobile phones.

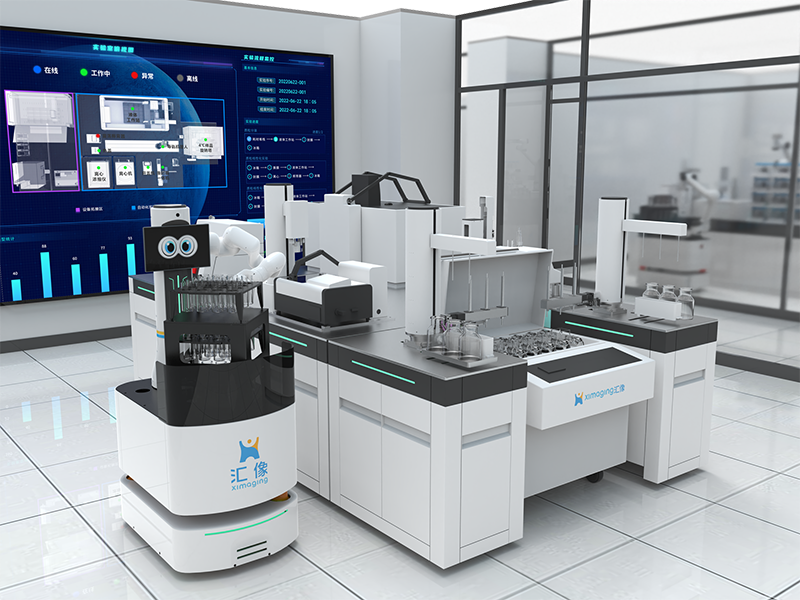

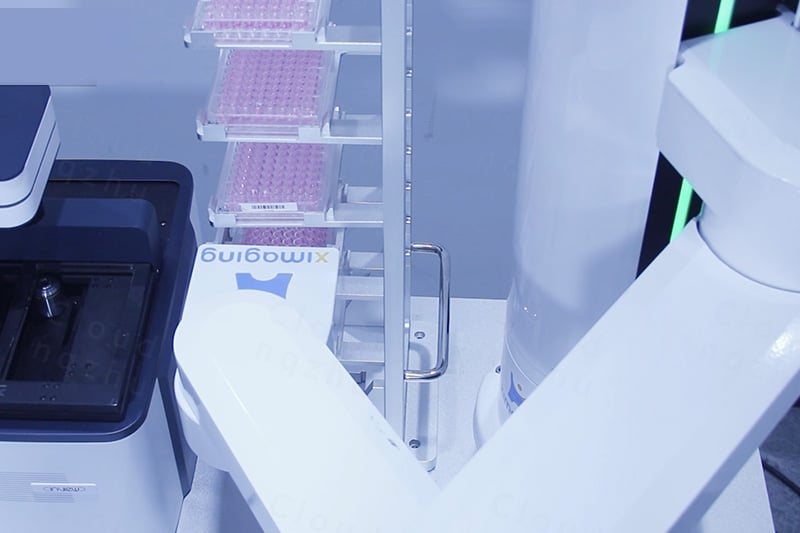

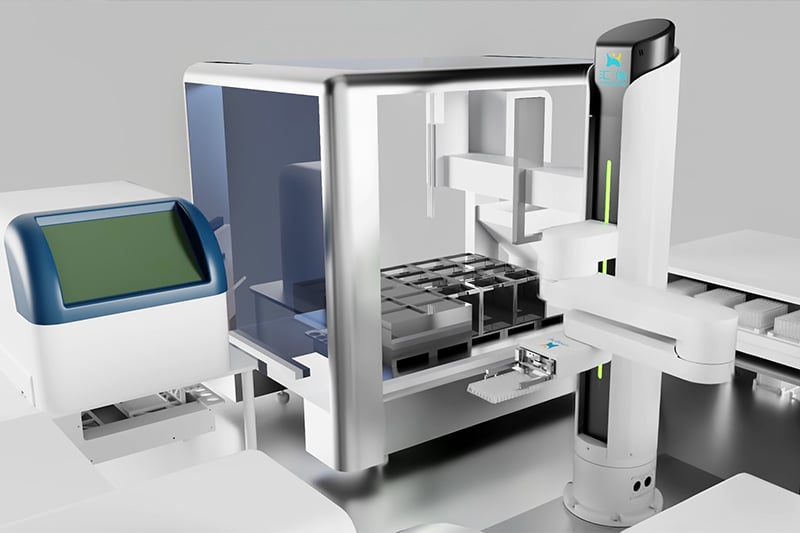

Laboratory application scenarios for chemical,analysis,testing and biological,used for experiments where high accuracy and lightweight assembly.
| Place of Origin: | China |
| Brand Name: | Ximaging |
| Model Number: | HelenX5 |
| Certification: | CE,UL |
